串行数据验证和一致性软件

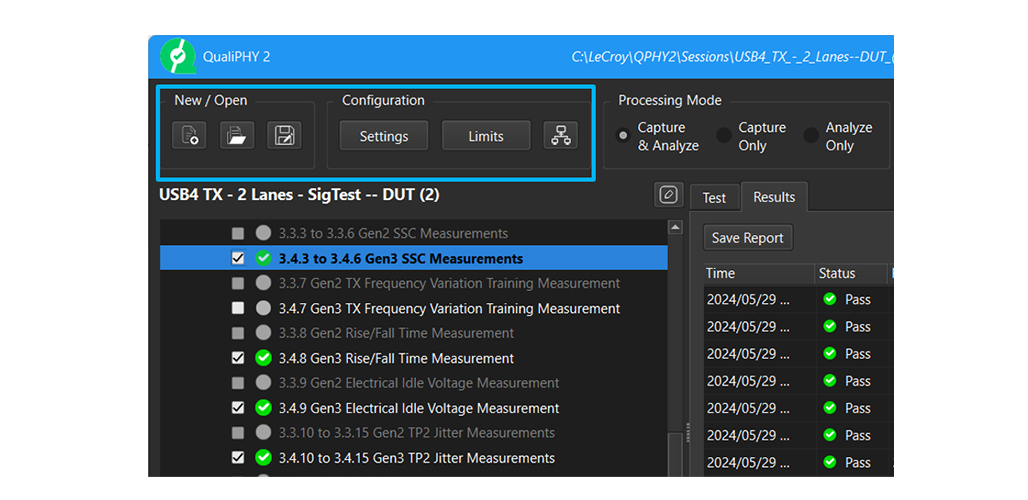

Streamline project organization effortlessly with test session management tools.

• Add one or more devices to a single test session.
• Recall device test configurations from previous tests.
• Import data to merge data from multiple test sessions for further analysis.
• One unified test framework contains all Tx and Rx test sessions.

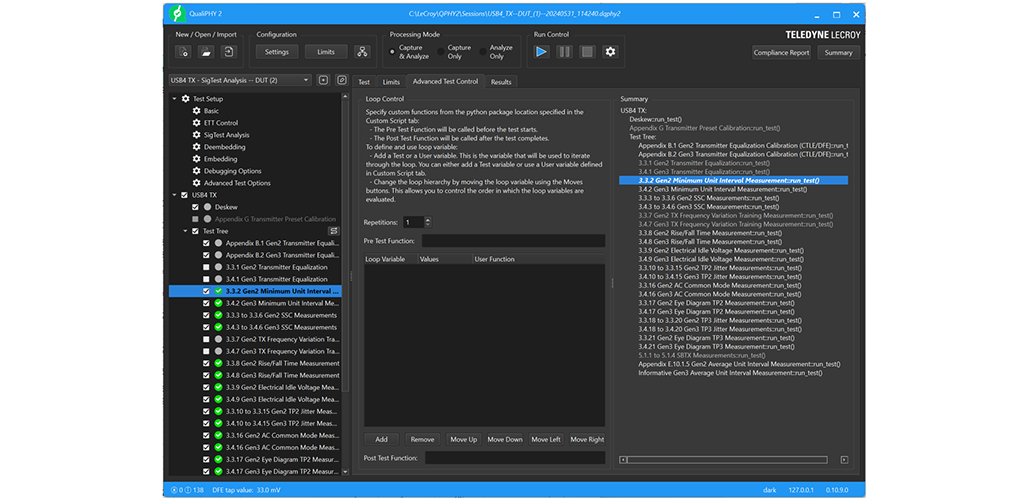

Improve test automation using powerful Python-enabled program control.

• Create Looping on control parameters for production verification testing (PVT).
• Repeat tests multiple times for repeatability.
• Pretest and post test functions using your own Python scripts.

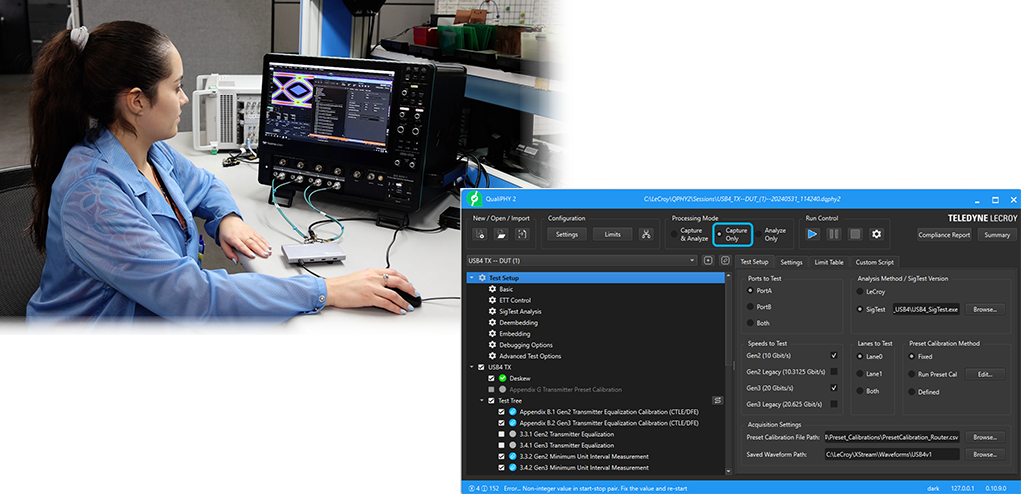

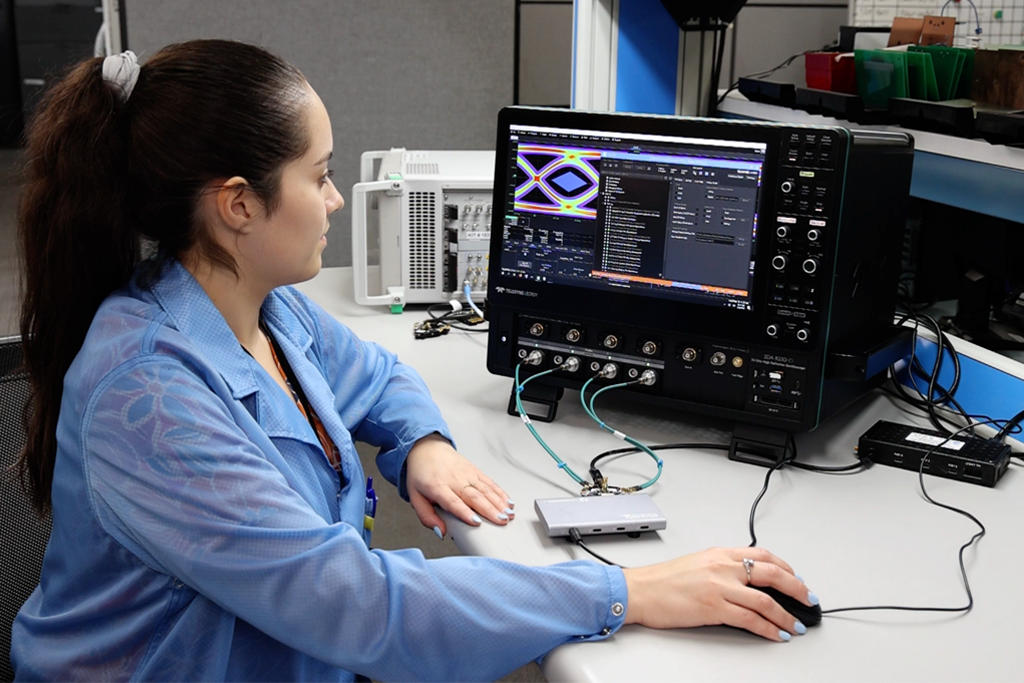

Leverage the ‘Capture Only’ mode in QualiPHY 2 to collect device waveform data on the oscilloscope in the lab.

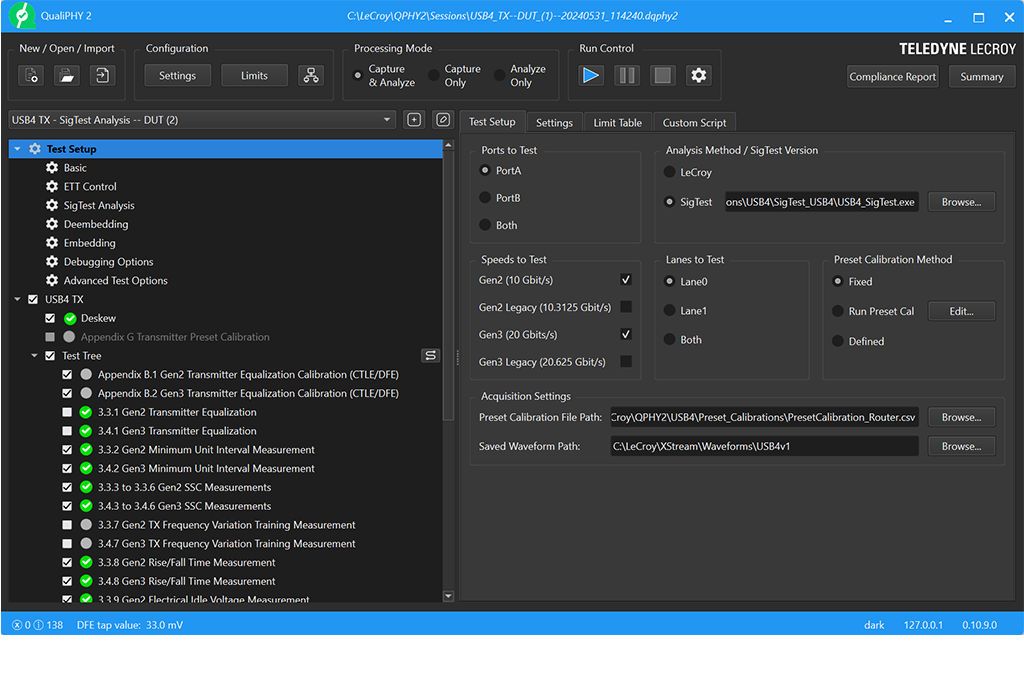

• The test tree is used to configure settings and select specific compliance tests to be completed.
• Waveforms from multiple devices, firmware versions, and test conditions can be captured in the same test session.
• All waveforms are captured and saved in the single QualiPHY 2 test session file.

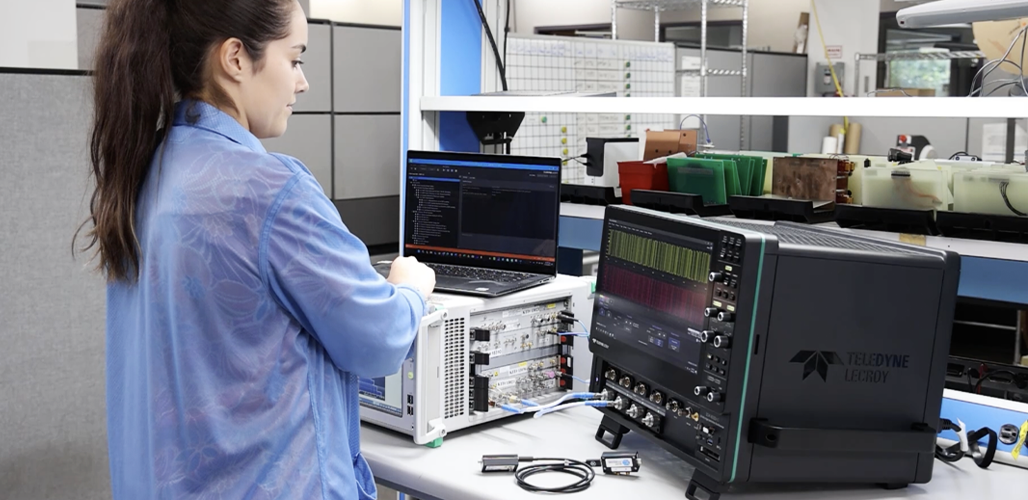

Analyze captured waveforms immediately in the lab using the oscilloscope PC, and make immediate determinations on the quality of the device under test and the test setup.

• Use Session Management capabilities to define and perform tests.
• Use QualiPHY 2 algorithms, SDA Expert software, or 3rd party software such as Intel’s SigTest or AMD’s SeaSim to perform initial assessments.
• Perform final captures and make measurements (as desired) with pass/fail results and margins loaded to the results database.

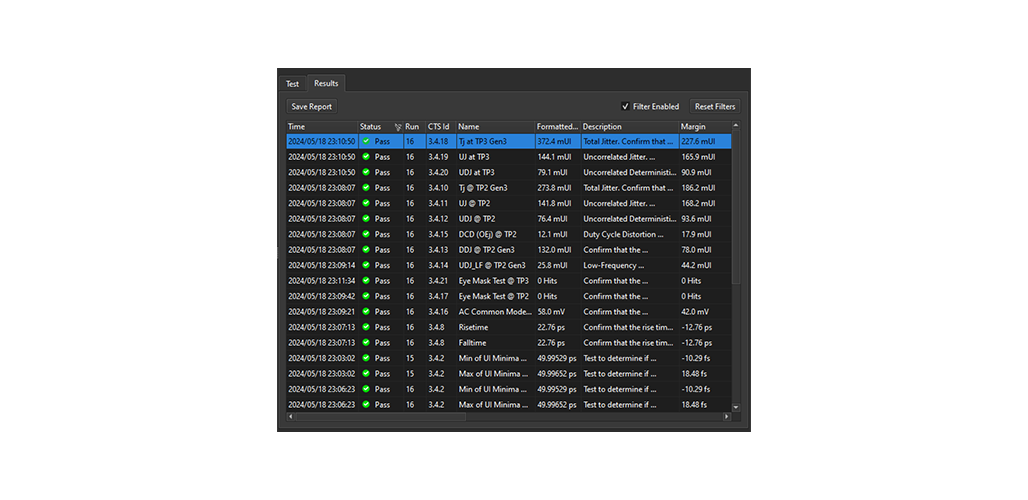

The QualiPHY 2 Results Database puts all the results right at your fingertips, ready for immediate review. Then, create a targeted report tailored to the specific task.

• Each test appears indexed by run number
• Table format provides sorting and filtering.
• Export table to .csv for additional analysis.
• Report ‘All’ test results, ‘Best’ or ‘Worst’ results under various conditions, or ‘Last’ when running final compliance test on a golden device.

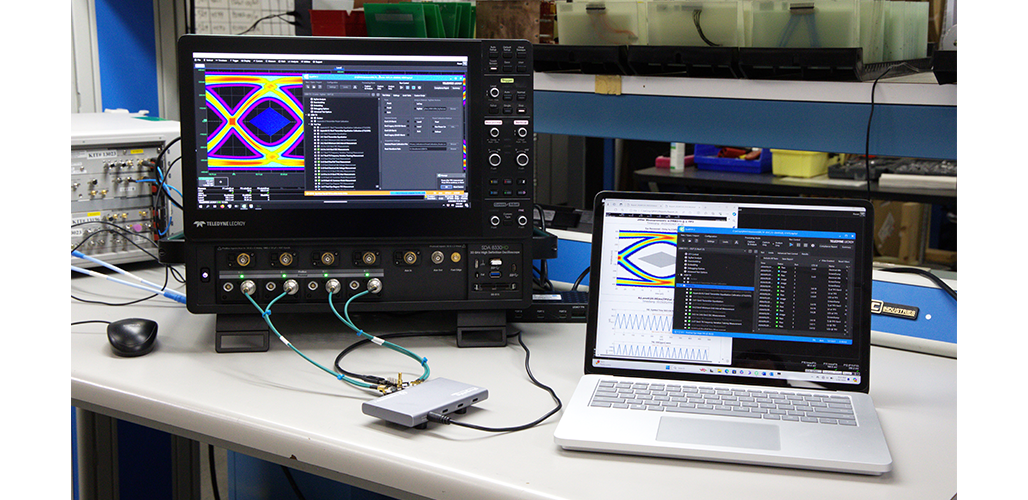

Seamlessly connect to the oscilloscope in the lab using QPHY2-PC through LAN

• For Tx testing, capture session data directly over the remote connection.
• Perform BERT Calibrations for Rx testing on the oscilloscope, then perform the actual BER testing on the remote computer using QPHY2-PC.
• QPHY2-PC processes the waveform data remotely and frees the oscilloscope for other testing.

• For Tx testing, capture session data directly over the remote connection.
• Perform BERT Calibrations for Rx testing on the oscilloscope, then perform the actual BER testing on the remote computer using QPHY2-PC.
• QPHY2-PC processes the waveform data remotely and frees the oscilloscope for other testing.

‘Analysis Only’ mode in QPHY2-PC efficiently post-processes waveform data on the remote computer, freeing up the oscilloscope in the lab for other testing tasks.

• Simply open the test session file on the remote computer and continue with testing .
• Waveforms are analyzed offline by MAUI® Studio, Teledyne LeCroy’s SDA Expert software, or 3rd party software such as Intel’s SigTest or AMD’s SeaSim.
• Measurements, pass/fail, and margin are loaded to the results database at the completion of all tests.

The Results Database in QPHY2-PC is the same database in the QualiPHY 2 software and results are merged when data sets are imported into a common test session. All the device results are at your fingertips and ready for immediate review.

• Each test appears indexed by run number.
• Table format provides sorting and filtering.
• Export table to .csv for additional analysis.

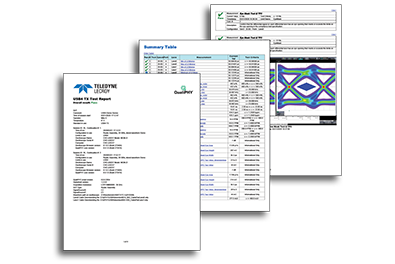

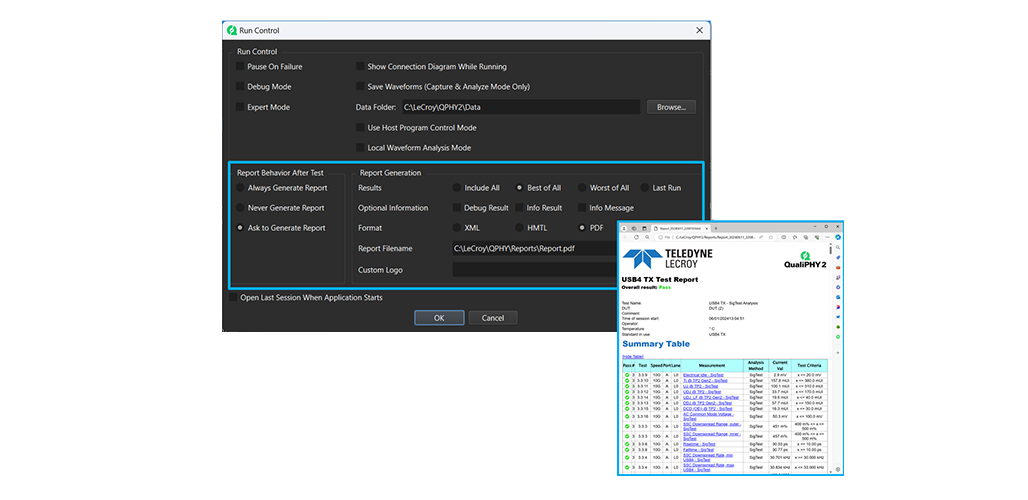

Use QPHY2-PC Reporting to generate a targeted report tailored to the specific task at hand.

• Report ‘All’ test results in the data base.
• Report ‘Best’ or ‘Worst’ results over multiple devices or test conditions.
• Report ‘Last’ when running final compliance test on a golden device.

Use QPHY2-PC to troubleshoot compliance failures and conduct retesting efficiently and offline, away from the lab. Create a detailed plan to capture new data upon return to the lab, using the Test Session Management tools to maximize efficiency while in the lab.

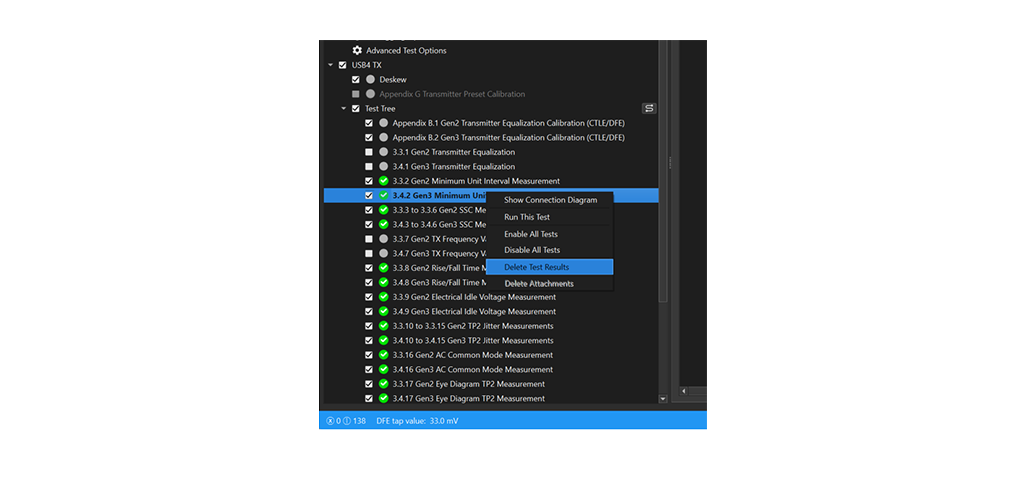

• Remove unwanted test results from the database.
• Further analyze waveforms using SDA Expert measurements in MAUI Studio Pro.
• Re-Acquire failed tests in the lab using the same test session file.
• Return to the lab with a modified Test Session file and keep the focus on specific tests needed for passing compliance.
